Swarovski Riflescope Z5 5-25x52 BRX Review

Swarovski Riflescope Z5 5-25x52 BRX Feature
- Newly Designed 5x Zoom riflescope
- High magnification with a wide field of view
- 3.74" Eye relief
- Compact Rugged reliable
- Lightweight

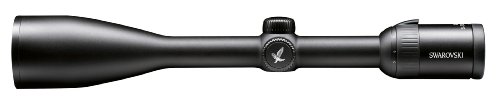

![]() Z5 riflescopes offer a remarkable 5x zoom with a one-inch main tube. |
- Magnification: The relatively compact one-inch riflescope offers powerful 5x zoom with a wide, ribbed magnification power ring with sure grip for accurate adjustment of entire magnification range.
- Optics:
- Extended Eye Relief: the long 3.74 inch eye relief allows for worry free concentration on the shot.
- Large Field of View: 5.8 to 1.17 degrees for greater overview.
- Reticle in the second image plane: the target observed is magnified while the size of the reticle remains the same.
- Microstructure surface: precisely defined ribbing prevents residual reflections inside the tube for bright, high-contrast images, even in intense light.
- Main Tube Construction: Rugged, one-inch, light weight alloy main tube finished with a tough anodized scratch resistant surface. The slim design provides enough space for easy mounting.
- Turrets: Large, rugged turrets with distinctive adjustable clicks for accurate adjustments. Turrets are waterproof even with turret caps removed.
- Lateral Parallax Turret: for fast and easy operation even in the shooting position. The Z5 riflescope's lateral parallax turret enables you to make a parallax-free adjustment to the relevant target distance even at longer distances. On the Z5 riflescope: third turret position allows for easy access for parallax adjustment; the desired shooting distance is easily adjustable; and parallax-free distances on turret are easy to read.
- Patented Swarovski Optik 4-point coil spring system for increased accuracy
![]() The riflescope features a BRX aiming reticle. |
- Magnification: 5 to 25x
- Objective lens: 48 to 52 millimeters
- Exit pupil: 9.6 to 2.1 millimeters
- Exit pupil distance: 95 millimeters / 3.74 inches
- Field of view: 7.3 to 1.5 meters at 100 meters / 21.9 to 4.5 feet at 100 yards
- Field of view: 4.2 to 0.84 degrees
- Subjective field of view, apparent: 21.5 degrees
- Dioptric compensation (diopter): -3 to +2
- Transmission (percent): >90
- Impact point cord. per click: 7 millimeters at 100 meters / 0.25 inches at 100 yards
- Maximum elevation/windage adjustment range: 1.2 to 0.7 meters at 100 meters / 43 to 25 inches at 100 yards
- Parallax correction: 55-
- Objective filter thread: M 54 x 0.75
- Length (approximate): 371 millimeters / 14.61 inches
- Weight (approximate): 495 grams / 17.5 ounces
- Central tube diameter: 25.4 millimeters / 1 inch
Long range shooting reticle
